Plastic artificial rattan extrusion machine for furniture

Quality Merchants

Artificial rattan is usually made from plastic materials like PVC, polyethylene, or polypropylene. The raw plastic pellets are melted and extruded into the rattan shape.
Extrusion machines feed the plastic pellets into a hopper which leads to a turning screw. The screw pushes the material through a heated barrel, melting it.
The molten plastic is then forced through a die with the desired profile shape (round, oval, flat) which forms the rattan strand.
The strand goes through a water bath to cool and harden, then runs through puller rollers to straighten and smooth the surface.
Typical extrusion machine capacity is 50-500 kg/hr depending on the size. Screw diameter, heating zones, and die design all factor into output.
dies can create solid or hollow rattan strands, as well as curved, knobby, or textured surfaces to mimic natural rattan look.
Secondary equipment can cut and print the rattan for desired length and color patterns. The strands are assembled into furniture frames or woven panels.
Key components are the hopper, screw, barrel, die, cooling bath, and pullers. Process monitoring and control systems are critical.
These extrusion lines run continuously and are common in factory settings for high volume production. Various grades are available for indoor/outdoor use.

$ 4,000-10,000

In Stock

Prices are for reference only

SKU	100
Brand	JIANTAI
Country	China
Lead time (days)	35

Material

Civilian Medical

Get a quote

JIANTAI

Online Service

24 hours online answer
Information Security

Ensure user data security
Popular products

Worth recommending

DESCRIPTION

Key attributes

Industry-specific attributes

Screw Design

Single-screw

Screw L/D Ratio

28:1

Other attributes

Condition

New

Plastic Processed

Application

Bar

Showroom Location

None

Place of Origin

Zhejiang, China

Weight

400KG

Warranty

1 Year

Key Selling Points

Competitive Price

Applicable Industries

Manufacturing Plant

Video outgoing-inspection

Provided

Warranty of core components

1 Year

Core Components

Motor, PLC, Gearbox, Screw

Machinery Test Report

Not Available

Screw Material

38CrMoALA

Screw diameter (mm)

Screw Speed (rpm)

70 rpm

Brand Name

Voltage

380V/220V/440V

Dimension(L*W*H)

2200X800X1700MM

Power (kW)

7.5

After-sales Service Provided

Engineers available to service machinery overseas

Product name

Plastic artificial rattan extrusion machine for furniture

Keywords

rattan extrusion machine

Material Processed

PE PP

Voltage

380V/220V/440V

capacity

30-40kg/h

Product

Plastic artificial rattan extrusion machine for furniture

Production speed

10-20M/Min

Screw diameter

45MM

Power

7.5KW/10HP

Packaging & delivery

Package Type:

Plastic artificial rattan extrusion machine for furniture Packed by plastic films, wooden pallets, wooden boxes as per customers' requirements.(Plastic Rattan Machine)

Supply Ability

10 Set/Sets per Month

Product Desription

Let us contribute to environmental protection to a force!

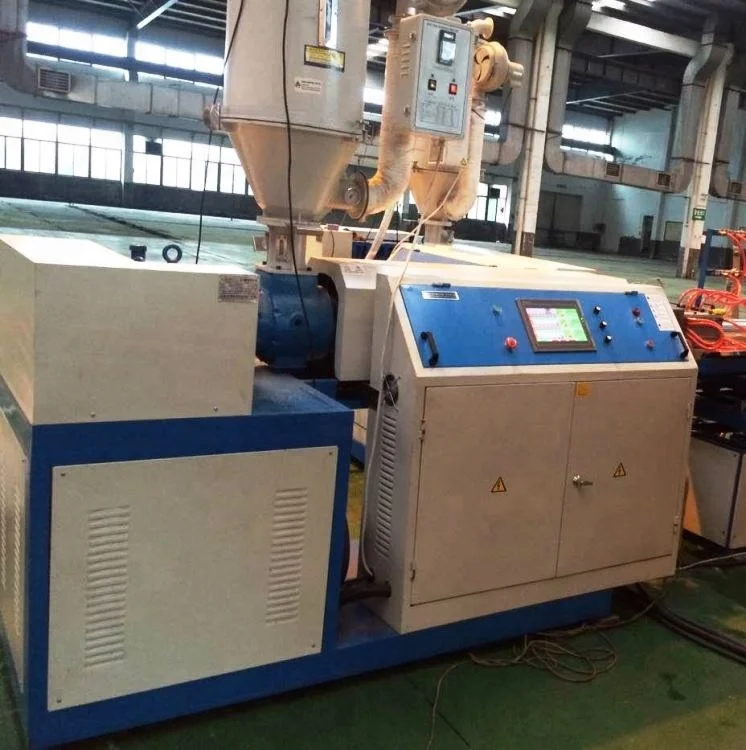

Plastic artificial rattan extrusion machine for furniture

⇒Plastic artificial rattan extrusion machine for furniture

Plastic rattan extrusion machine can produce single or multicolor plastic rattan.

Use: Plastic rattan extrusion machine is widely used in rattan chair, tea table, flower basket, weaving art and craft, furniture, etc

Features: Using different raw material such as PEPP, the extrusion line can produce plastic resembling rattan with different textures.

Rattan type	single, double , three colors rattan as per samples
Main Extruder model	SJ45, SJ50, SJ65
Main Extruder L/D	25:1/28:1/30:1
Capacity	30-50kg/h
Main Motor	7.5KW/10HP
Cooling type	air fans cooling and Water cooling
Production Speed	10-20m/min
